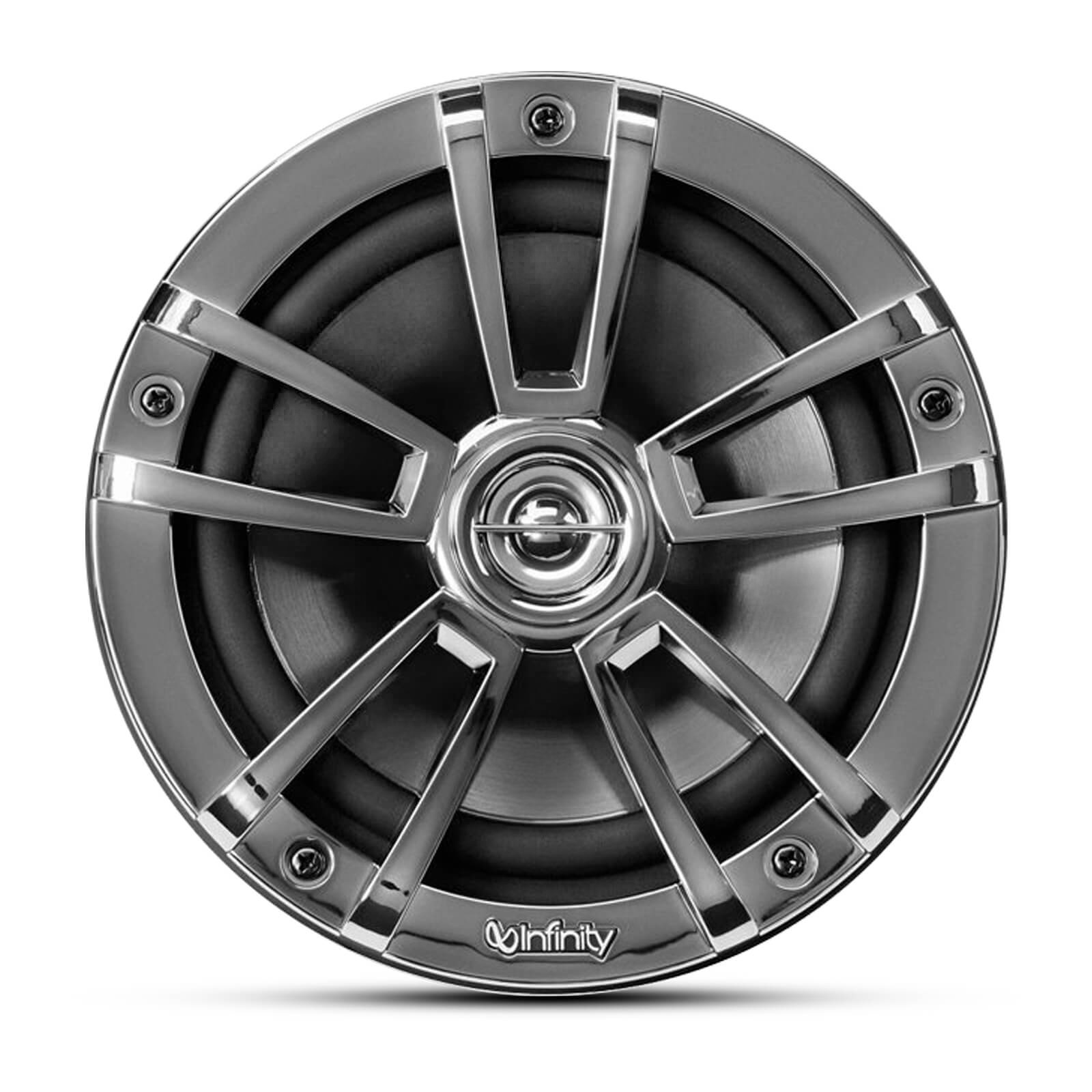

PACKAGE BUNDLE INCLUDES: 1 Pair (QTY 2) of Infinity Reference 10 Marine Audio Multi-Element Chrome Subwoofers with RGB LED Lighting (Bulk Packaging). Bulk packaging: The products I nthis bundle are Brand New but some are not in retail packaging. Mounting hardware is not included unless specified otherwise in the description.
Subwoofer:
- IPx5 Marine Rating
- Cosmetic Appeal
- Outdoor Performance

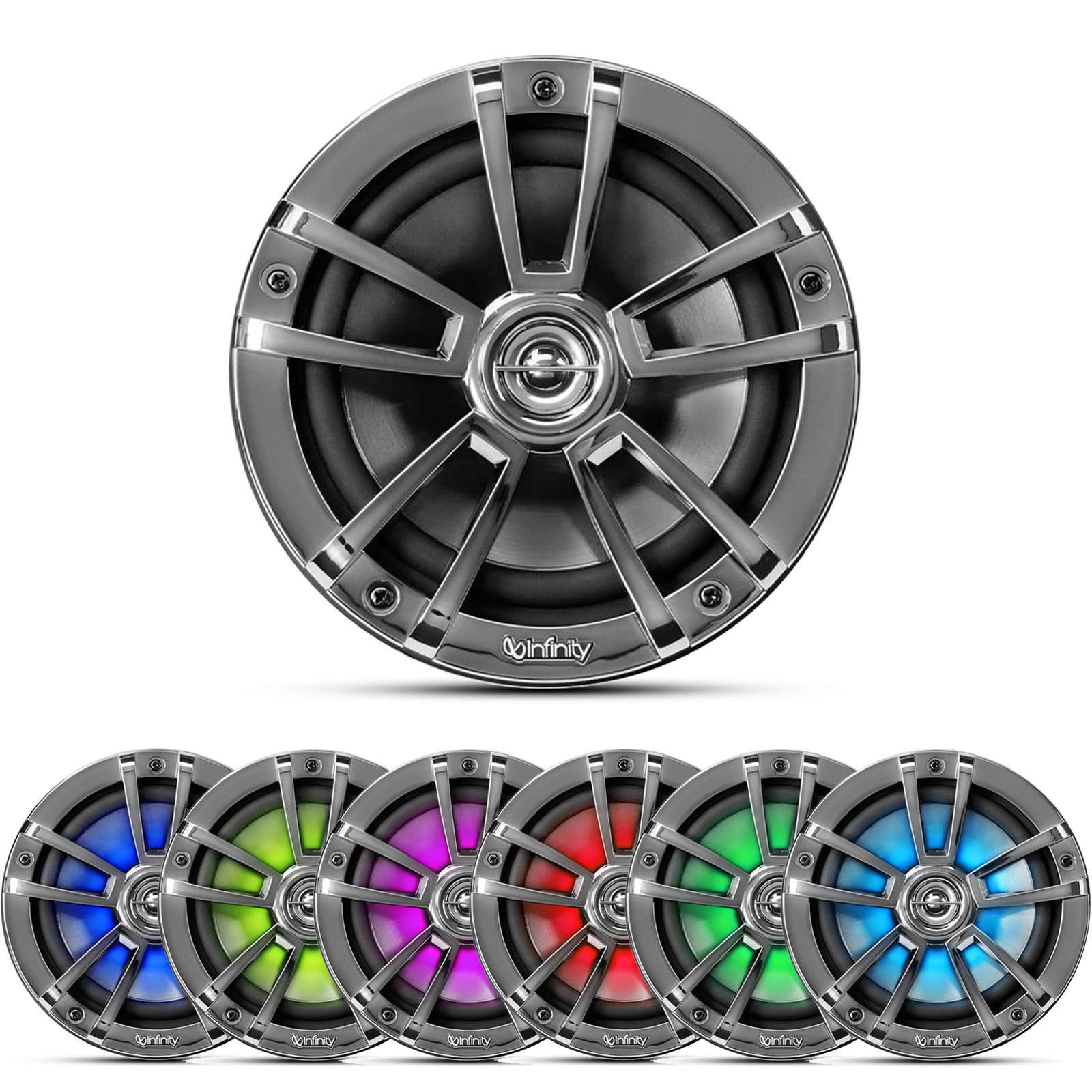

- Multi-Color RGB Lighting
- Marine Design
- Bridge Mounted (Grille Mounted) Tweeters
- Balanced Dome Tweeters
- Weather-Resistant
- One-Piece Polymer Basket
- Rubber Surrounds
- Harman Standard Reliability Testing
- Individually Voiced
- Power Handling: 250W RMS, 750W peak
- Sensitivity (@ 2.83V): 89dB
- Frequency Response: 25Hz – 500Hz
- Impedance: 4 ohms
- Bulk Packaging
LED Wiring Instructions:
Lighting is controlled manually through hardwired connection. Remove the adapter at the end of the speakers to expose the wiring. It will include a Black, Red, Green and Blue wire. When hard wiring the RGB lighting, the black lead is +12V and the Red/Green/Blue leads are ground (-) There are seven colors available through hardwired connection, select your color of choice and proceed with wiring it.
- +12V = Black
- (-) Red = Red
- (-) Green = Green
- (-) Blue = Blue
- (-) Red + Green = Lime Green
- (-) Red + Blue = Magenta
- (-) Blue + Green = Aquamarine
- (-) Red + Blue + Green = Blue/White
